Model "14" Modular fence with plug :
Dimensions:
height 1500 mm x width between the axes of the pillars 2440 mm.
The height of the section, wicket and gate is calculated from the ground to the top of the section, provided that the distance between the ground and the lower edge is up to 10 cm.
Go to the GALLERY of plastic fences installed by our customers.
Panels
Each has stiffeners and is visually divided into 4 strips of 71.7 mm.
Dimensions of fence modules:
- length 1015 mm;
- width 287 mm;
- module thickness 22.2 mm.
Top bar
Dimensions:
thickness 51 mm,
height 89 mm,
length 2387 mm.
Middle bar:
Dimensions : thickness 51 mm; height 152 mm, length 2387 mm.
On one side of the crossbar there is a recess for fastening
connected fence modules, on the other - holes for attaching shtaketin.
The size of the holes for the picket fence: 38x38 mm.
Bottom bar with aluminum profile.
Dimensions:
width 51 mm,
height 152 mm,
length 2387 mm.
Profile for mounting modules
2 pieces of U-shaped PVC fasteners 1.5 mm thick.
They are fixed on the extreme modules in the fence canvas,
at the point of contact between the panel and the pole.
Fence
24 pcs.
section 38x38 mm,
length 375 mm,
wall thickness 2 mm.
The picket fence enters with one end into the middle crossbar, and with the other - into the top.

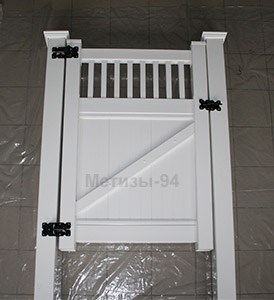

Wickets and gates
Maximum overall dimensions .
gate :
height 1500 mm.
width 1000 mm.
double swing gates:
height 1450 mm.
width 2720 mm and 3000 mm.
accessories

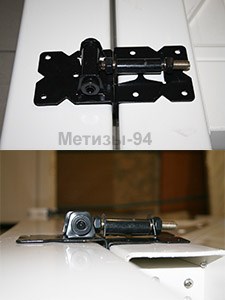

loops

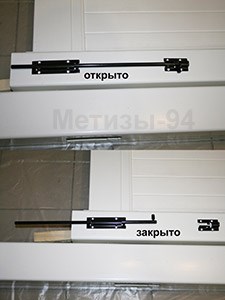

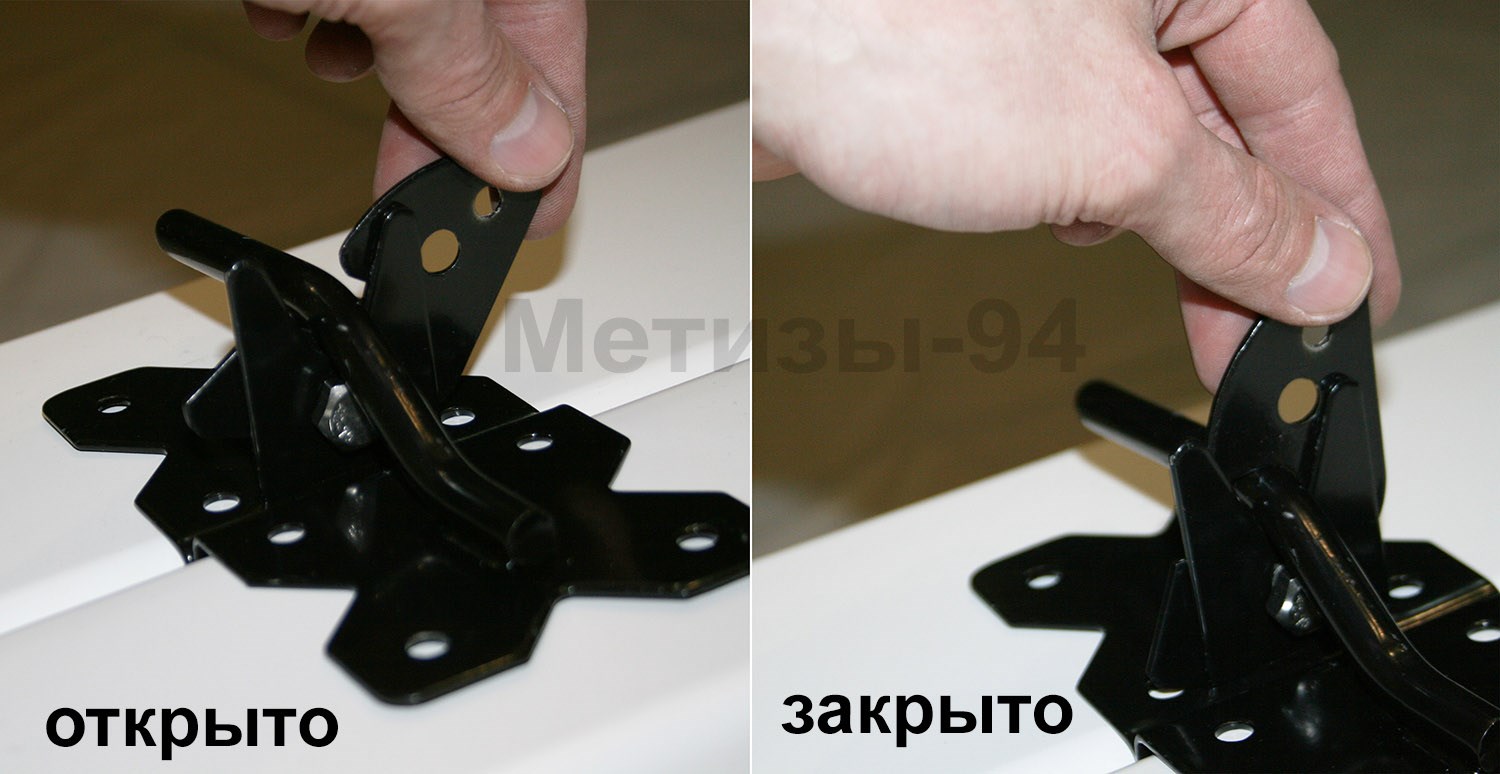

Hasp horizontal
Hasp vertical
pillars
The final, corner and intermediate supports for the fence differ only in the location of the mounting holes: on the final supports they are located only on one wall, on the intermediate ones - on two parallel walls, on the corner ones - on two adjacent walls.
The size of the post for a modular fence with a picket fence: 127x127x2200 mm . Wall thickness 3.8 mm.
The thickness of the aluminum profile is 1.8 mm.
750 mm - dimension from the bottom edge of the post to the bottom edge of the hole (for concreting)
Mounting hole size:
- top hole 51x89 mm;
- middle and bottom 51x152 mm.
To protect against water penetration, the column is closed with an "English" plug:
Intermediatewith two holes
on one line
Reinforcedwith aluminum profile

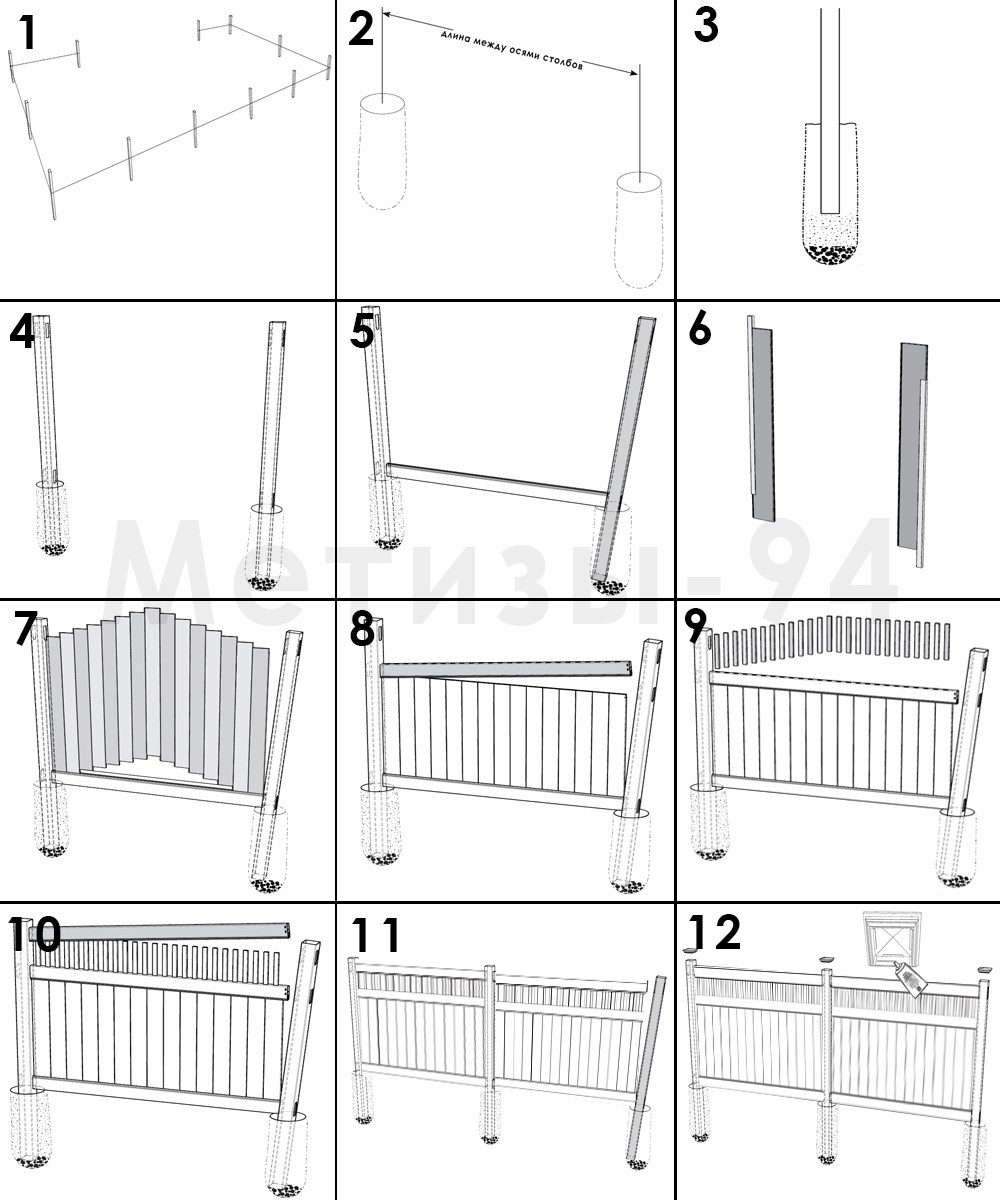

"English" stubSteps for installing a modular fence :
