Description of the minimum wage of confusion.
Inconspicuous obstacle (inconspicuous wire net, MZP, MZP putanka, putanka ) - a three-dimensional barrier made of carbon wire rings. The wire is very thin, so it is almost invisible. Refers to engineering non-explosive containment barriers.
The task of the MZP of the muddle is to prevent it from approaching the object. A person falls into a trap of rings and, in most cases, will not be able to get out of it on their own. It takes a lot of time to cut a passage in the barrier.
An inconspicuous obstacle ( putanka ) is a serious obstacle for wheeled and tracked vehicles. Wire rings are wound around the wheels or tracks and stop the wheels from spinning.
MZP - a four-tiered network of ring garlands. It is installed in the form of a parallelepipped.
Rings are made from galvanized or non-galvanized carbon wire GOST 7372-79 with a diameter of 0.5; 0.6; 0.8 and 0.9 mm. Ring garlands are interconnected by wire twists of annealed wire with a diameter of 0.8 mm (GOST 3282-74). Pegs for fastening, rings for them are made from low-carbon wire .
See the effectiveness of the MZP on the video.
Technical characteristics of an inconspicuous wire network (mess):
| Parameter | Meaning |
| Unfolded dimensions | 10x5x1.4 m |
| Wire diameter / number of garlands; | 0.9 mm / 20 pieces 0.8 mm / 20 pieces 0.6 mm / 20 pieces 0.5 mm / 20 pieces twist - 0.8 mm |
| Folded dimensions | 1.2x0.6x0.8 m |
| Package weight without rings and peg | 12 kg |
| Complete set of the MZP package with rings and pegs | 40 pieces |
How much space does PZP Putanka take in a car body?
Here are the measurements of the batch of MZP Putanka (20 sets):
| MZP 20 sets | Rings and pegs | |
| Length, m | 0.98 | 0.2 |
| Width, m | 0.68 | 0.4 |
| Height, m | 0.75 | 0.4 |
| Volume, m 3 | 0.4998 | 0.032 |
20 sets will take up a volume of 0.5318 m3 (0.026 m3/set).
The appearance of the fence, pegs and rings may differ from that on the site, depending on the equipment on which this batch is produced.
If you need to buy an inconspicuous obstacle of a specific appearance, then give written requirements for the type of confusion.
The price of an inconspicuous obstacle (MZP putanki).
The price of this inconspicuous obstacle depends on many factors, especially on the volume of purchases, stock availability and type of wire (galvanized or not galvanized). Here is the current price list for MZP Putanka ➤

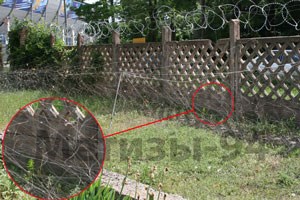

Installation of an inconspicuous wire network
INSTALLATION INSTRUCTIONS MZP (with pictures)
MZP putanka is installed by 4-8 people on the ground, on a fence, wall, roof of a building or structure.
In the lower tier there are garlands with a larger wire diameter.
The lower rings of an inconspicuous obstacle are attached to the ground with brackets and other devices every 1-2 meters along the perimeter of the barrier.
The upper edge of an inconspicuous wire net must be fixed to stakes to add volume and improve barrier properties.

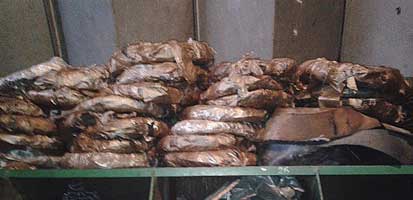

Packing MZP Putanki
MZP putanka are released oiled with gun grease in packages wrapped in oiled paper.
Where to buy an inconspicuous wire obstacle (MZP Putanka)?
At Metizy-94 you have the opportunity to buy an inconspicuous wire obstacle - MZP P from a Ukrainian-made tank .
An inconspicuous obstacle is completed with pegs, rings for mounting a wire fence. You can buy a "putanka" without a set of pegs.
For self-education:
V.A. Andryushchenko, P.A. Pirozhkov "Military engineering training." 2004 PDF
2004 Engineer Sergeant's Manual PDF
E.S. Kolibernov V.I. Kornev "Handbook of an officer of the engineering troops" 1989 PDF
"Special training of engineering troops units." USSR Ministry of Defense 1992 PDF
Block post. Device, tactics of personnel actions. PDF
