Egoza bracket: barbed wire brackets

Egoza bracket

The bracket for installing the egoza has a semicircular and trapezoidal shape.

Dimensions and description of brackets for egoza

Semicircular pipe brackets for egoza diameter:

450 mm
600 mm
950 mm.

Material: pipe 17 (+/- 1.1 mm), wall 2.2 mm.

The ends of the brackets are flattened so that moisture does not get into the pipe. In flattened places, holes are made for
fasteners with tension wire and the egoza spiral itself.
Coated with gray primer paint.
We supply brackets in bundles of 10 pieces or individually.

NEW! Semicircular brackets made of Kazachka® pipe with a pointed end:

Standard brackets provide insufficient protection of security objects from the penetration of individuals into the territory. An attacker can step with his foot, or lean with other parts of the body on the blunt end of the bracket, using it as a support to overcome a prickly obstacle. Thus, the area of attachment of a conventional bracket to a fidget is a weak point in the fence.

However, there is an exclusive solution to this problem:

When mounting a fidget using the Kazachka® bracket , the barrier has higher traumatic properties and therefore is a highly effective physical obstacle. It has been experimentally established that a bracket with pointed limbs is difficult to overcome without getting damaged.

Material: pipe 17 (+/- 1.1 mm), wall 2.2 mm.

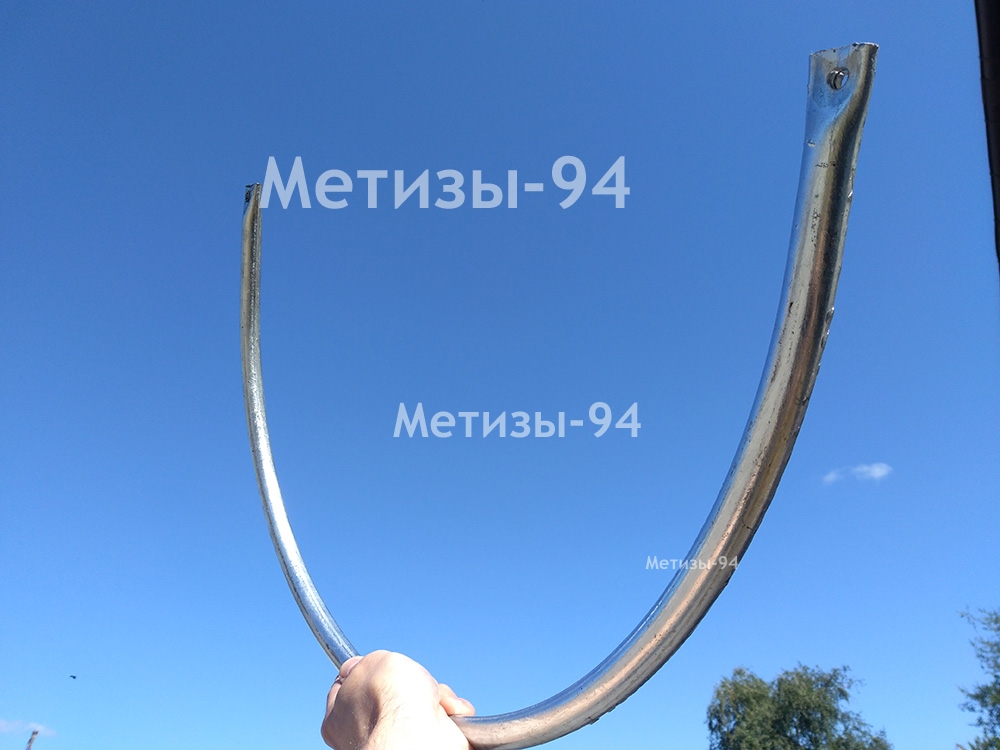

Galvanized semicircular pipe brackets:

The brackets are zinc plated. Only this method gives a dense thick layer of zinc on the surface - namely about 320 g/m2. These brackets will last up to 100 years!

Or in an aggressive environment (sea water, ammonia vapors) for more than 20 years.

The dimensions of the pipe are the same as those of the primed bracket. The only difference is the coverage.

In the video, you can see the sagging and cracks of zinc.

This is not a marriage. It depends on the thickness of the coating.

The thicker the coating, the more sagging will be. With this method of galvanizing, it is impossible to achieve an absolutely smooth surface.

Although it is not needed for brackets. The main thing is that it does not rust as long as possible. And this goal has been achieved.

You can profitably buy brackets for egoza from us

When the task is to "buy brackets for fidget", it is better to contact us than to try to make brackets on your own.
Why?
Yes, everything is simple, we produce brackets in large quantities and immediately arrive at the warehouse.
You can buy from us together with egoza brackets:

fidget Kazachka ,
brackets for mounting egoza
galvanized wire for tensioning the egoza ,
overlay Zjachok ,
anchors for mounting egoza.

When installing the fidgets, the brackets are mainly attached to the fence by welding, where this is not possible, they are shot with dowels or fastened with anchors.

We sell the most popular types of brackets.
But if you want to buy a different type of bracket, we can make brackets according to your drawings, with a sufficient order volume.
