Buy geogrids and geofabric by self-delivery or with delivery anywhere in Ukraine
Geofabric
It is a non-woven material, which is made of polypropylene by needle-punched method. geofabric is chemically resistant, has resistance to thermal-oxidative aging.
Geofabric does not rot, is not affected by fungi, mold, rodents, insects. Some types of geotextile are supplied with perennial grass seeds.
You can buy geofabric "PINEMA", "GEOBEL-T", PNIS-M" and other popular brands from us.
Geogrid
The structure is made of 1.5 mm thick polyethylene tapes fastened together in the form of honeycombs.
When installed in the working position, it forms a stable frame, which is filled with sand, earth, stones, depending on the purpose and conditions of use. The polyethylene from which the geogrid is made is neutral to aggressive environments, non-toxic, UV resistant, oil-alkali resistant, fresh and salt water resistant, which retains its characteristics over many years of operation.
Flat geogrid (geogrid)
The flat geogrid (geogrid) is a polymeric grid of flat type for division of earth massifs.
In the construction of roads, highways and bridges, the layers of the road surface are separated by a geogrid to increase the resistance to dynamic and static loads.
Technical characteristics of geotextile
Geofabric "PINEMA"
- has a filtration coefficient of at least 130 m/day at a load of 2 kPa;
- produced with surface density of 190 g/m2, 250 g/m2, 300 g/m2, 360 g/m2, 400 g/m2, 450 g/m2, 500 g/m2, 600 g/m2;
- geofabric has a web width of 2650 mm and 5300 mm. Length in a roll 100-300 r.m.;
- Supplied in rolls (diameter 800-900 mm).
Heat-treated geofabric "GEOBEL-T" and "PNIS-M"
- has a filtration coefficient of at least 40 m/day at a load of 2 kPa;
- produced with surface density of 150 g/m2, 190 g/m2, 220 g/m2, 250 g/m2, 290 g/m2, 330 g/m2, 370 g/m2, 400 g/m2, 430 g/m2, 450 g/m2;
- geofabric has a web width of 2650 mm and 5300 mm. Length in a roll 100-300 r.m.;
- supplied in rolls (diameter 500-800 mm).
Application of geotextile
Construction
The geofabric separates the layers and redistributes the stress in the base of the embankment, increases the bearing capacity of the base, the stability of the slopes, and improves the conditions for compacting the subgrade. Also, in this application of geofabric, reinforcement is performed when designing embankments with high humidity. Replacing sand drainage with geotextiles reduces sand consumption, increases construction rates, and reduces labor intensity.
The geofabric prevents mixing of bulk material and soil, reduces the deformation of the road surface, provides drainage, slope reinforcement, filtration, protection of underground waterproofing from mechanical damage, unloading of load-bearing structures . The geotextile forms a protective and drainage layer between the rock and the waterproofing. Protects waterproofing from damage by rough concrete surfaces and sharp aggregates. The geotextile reduces stress between the concrete finish and the rock. Geofabric diverts ground and storm water to drainage.
The geofabric prevents the crushed stone from mixing with the soil and thus performs the functions of protection, filtration and load distribution. Excavation is negligible due to the small thickness of the structure, non-woven materials relieve load-bearing structures, and are easy to fit due to their low weight
Hydraulic structures, pools, reservoirs, rates, irrigation canals, rivers
The geofabric acts as a filter under the coastal fortification. Prevents washing out of the land without additional coastal protection in small channels or during floods. Geofabric provides sufficient water permeability of the coastal reinforcement. Geofabric prevents damage to the waterproofing during laying, prevents damage to the waterproofing due to uneven ground, diverts groundwater and prevents water erosion of slopes in the event of a drop in the water level in a reservoir or canal.
You can buy a geogrid from us
Supplied in 14.5 m2 modules (in working position). It is transported in the folded state and occupies a small volume.
The geogrid in combination with geofabric prevents displacement, subsidence, cracking of the structure, washing out and erosion of the soil and allows you to successfully deal with the phenomenon of frost heaving, inevitable in dusty soils, drains excess water. The use of a geogrid can significantly reduce the thickness of the embankment by reinforcing it, as well as actively use even waste building materials and soil.
The geogrid is used for anti-erosion protection of slopes, protection of overpass cones, construction of retaining walls, reinforcement of weak foundations. The cell walls are embossed to increase friction with the fill material and perforated to improve the drainage performance of the structure. Allows you to perform installation work in the temperature range from -40 ° C to +60 ° C, the raw material is neutral to aggressive environments, environmentally safe.
The geogrid is convenient for the construction of retaining walls of various heights and with any angle of laying. The modules are easy to stack on top of each other. The cells are filled with crushed stone or sand with layer-by-layer compaction.
To contain ravines and riverbeds, as a rule, geofabric and geogrids with a large cell and with plant filler are used. The geogrid prevents the soil from being washed out and thus preserves the vegetation. After the development of the vegetation cover is completed, the geogrid becomes almost invisible.
The geogrid is effective in the construction of roads on weak foundations. A geogrid filled with soil, like a flexible slab, distributes the load from the embankment onto a weak foundation and ensures uniform settlement of the entire structure.

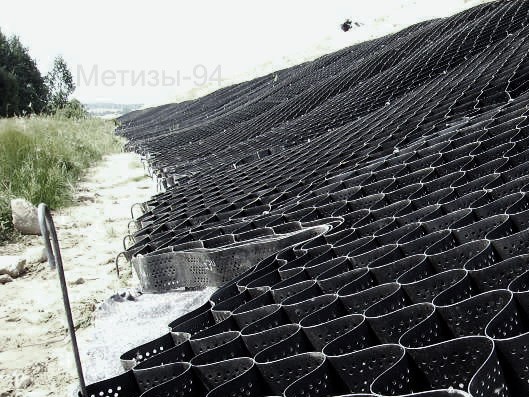

Mounting on slope surfaces is carried out using L-shaped anchors 12-16 mm and 0.6-1.2 m long, made of steel or high-strength plastics. Anchors are installed along the contour of each geogrid to ensure its proper stretching in the form of a rectangle.
A separating and draining layer of non-woven geofabric is laid between the geogrids and the surface of the zeili (in cases where the frame is filled with crushed stone).
Soil, crushed stone and concrete with a frost resistance of at least M200 are used as a cell filler.
The main advantage of the geogrid technology is the ability of the filler material to contain slopes of such a steepness that this material does not hold itself on the slope.
Geogrids for containment of the surface of the cones of bridges and overpasses, as well as for strengthening pipelines.
Recently, the ground type of gas pipeline laying has become most widespread. It avoids the disadvantages that arise during underground laying.
However, this method of construction has a disadvantage, which is the erosional destruction of slopes resulting from the action of water and wind. The following structures have been developed to protect the pipeline:
- Strengthening slopes with the help of geofabric with seeds of perennial grasses;
- Planting trees and shrubs at the exit nodes of the gas pipeline;
- Strengthening of the pipeline embankment with the help of soil-filled geotextile containers with sprinkling of peat-sand mixture.
Flat geogrid (geogrid)
This is a flat-type polymer mesh for separating earth massifs. In the construction of roads, highways and bridges, the layers of the road surface are separated by a geogrid to increase the resistance to dynamic and static loads. It is especially important to buy a geogrid in the construction of roads, construction and production sites in areas prone to landslides.
A geogrid separates layers of granular materials, such as crushed stone and gravel, from the soil. The high rigidity of the flat geogrid increases the bearing properties of the pavement, so over time, the pavement does not form dips and holes, the road will not crawl away and will last longer.
The use of geogrids in road construction saves money in two ways. Firstly, when using a geogrid, less road material is laid without loss of properties, and secondly, the coating is more durable.
On Metizah-94, you can buy a flat geogrid of the following sizes:
- cell 40x40mm;
- roll width 5.9m;
- roll length - 50 r.m.
- tensile load - 30 kN/m
