Expanded PVL sheet

PVL is a Expanded Sheet. Buy from 5 pcs. Price in PRICE .
An expanded metal sheet was produced according to TU 36-26.11-5-89 (instead of the obsolete GOST 8706-58), according to TU U 271-13625948-002:2006 by cutting and drawing from cold-rolled, hot -rolled, galvanized sheet . After cutting and stretching, the sheet falls under the press, where it is given a flat plane.

Sheet width, mm: 500, 600, 700, 800, 900, 1000, 1250.
Cell pitch 90 mm and 110 mm.
The length of the sheet is unmeasured - 2 - 3.5 m or measured pieces according to your order within 2-3.5 m.
Up to 10% of pieces less than 2 m long are allowed in a batch.

The cells of the sheet are arranged so that the wider diagonal is located across the PVL.

Specifications for expanded metal sheet

Expanded sheet has tolerances:

• Sheet width +/- 10 mm.
• The length of the sheet is +/-25 mm.
• Cut corner - no more than 1.5 ^o.
• Flaws, stress cracks should have a length of no more than 2 mm.
• By the size of the drawing, feed, step, cell length is not controlled and is provided by the parameters of the cutting tool.
• The sheet may have an impenetrable section, it must be specified in the order. If this is not important for you, then it will be of such a size that the previous client was satisfied.
• The sheet is made from sheet carbon steel according to State Standard 14637-89 grades St3kp, St3sp and St3ps according to GOST 380-88 with a thickness of 4.0 mm, 5.0 mm and 6.0 mm. By agreement with the buyer, it is allowed to manufacture PVL from other brands.
• The sheet is stored, like any other rolled metal, both in closed warehouses and in open areas. The sheet can be transported in an open rolling stock.

We issue a certificate of quality for expanded metal sheets for each transaction.

Dimensions, weight, values of limit loads of expanded metal

The table shows the expanded metal sheet, the values are standard and are used to create all types of decks and mid-flight stairs. The values of limit loads for deflection, clear cell dimensions, overall parameters, weight of the expanded metal sheet, thickness of the workpiece, feed, total thickness of the product, drawing are indicated.
The values of ultimate loads are indicated for the case of applying a force concentrated along the center line and with clamped ends of the sheet.
The control state is the achievement of a deflection of 1/120 of the width of the sheet (span) in accordance with building codes and regulations.
For an evenly distributed load, the indicated values are multiplied by 2.2.
With free support of the ends of the sheet, the ultimate loads are halved.

Expanded metal packaging, shipment and delivery

Expanded sheet is delivered in packs. The weight of a PVL pack is not more than 5 tons.
With each batch of expanded metal, a certificate is issued, which states:

• trademark or short designation of the manufacturer;
• Order number;
• symbol;
• date of issue of the certificate for the sheet;
• confirmation of the compliance of the sheet with the requirements of technical specifications;
• stamp of the technical control department.

Shipment is made from a warehouse in Zaporozhye, Dnipro, Kyiv. We have a logistician on staff who is looking for transport and ensuring the safety of cargo transportation. We have a database of verified carriers with which it is 100% safe to send cargo. If the owner of the car is not yet known to us, then we check it and collect recommendations for it throughout Ukraine. Therefore, ordering a sheet with delivery from us is more profitable than looking for transport yourself and wasting time.
Buy a PVC sheet with delivery in Ukraine: to Dnipro, Kamianske, Krivoy Rog, Kropyvnytskyi, Vinnitsa, Zhytomyr, Kyiv, Chernihiv, Cherkasy, Poltava, Sumy, Kharkiv, Donetsk and Luhansk regions, Melitopol, Kherson, Nikolaev, Odessa and other cities of Ukraine .

The price of expanded metal at the state of emergency "Metizy-94"

Download the price for PVL sheet in the price list. Price with VAT.

The price is wholesale. The final price of expanded metal will depend on the size of the order, is determined by negotiations and will be indicated in the invoice. The producer's price also depends on world fluctuations and the dynamics of changes in ore, energy costs. The political and economic situation in the country influences. Even seasonality has an effect. At the beginning of the construction season, the price per sheet will be higher than the price for PVL at the end of autumn.

Application of expanded metal sheet PVL

The sheet has the shape of scales and due to this, it is massively used in stairs and flyovers. It prevents slipping in conditions of icing and the presence of oil on the floor of industrial premises. An important function is self-cleaning from dirt. Dirt and fine gravel fall into the slots. And thanks to transparency, it is used for ventilation and all kinds of light-transmitting forms. In engineering, construction, mining and other industries:

• expanded metal sheet for the production of decking and steps of mid-flight stairs. Lattice decks, stairs, are used for maintenance platforms and walkways in the oil, gas, petrochemical industry, power plants, to create steel molds for all purposes.
• expanded metal sheet "PVL" is used in all areas of construction;

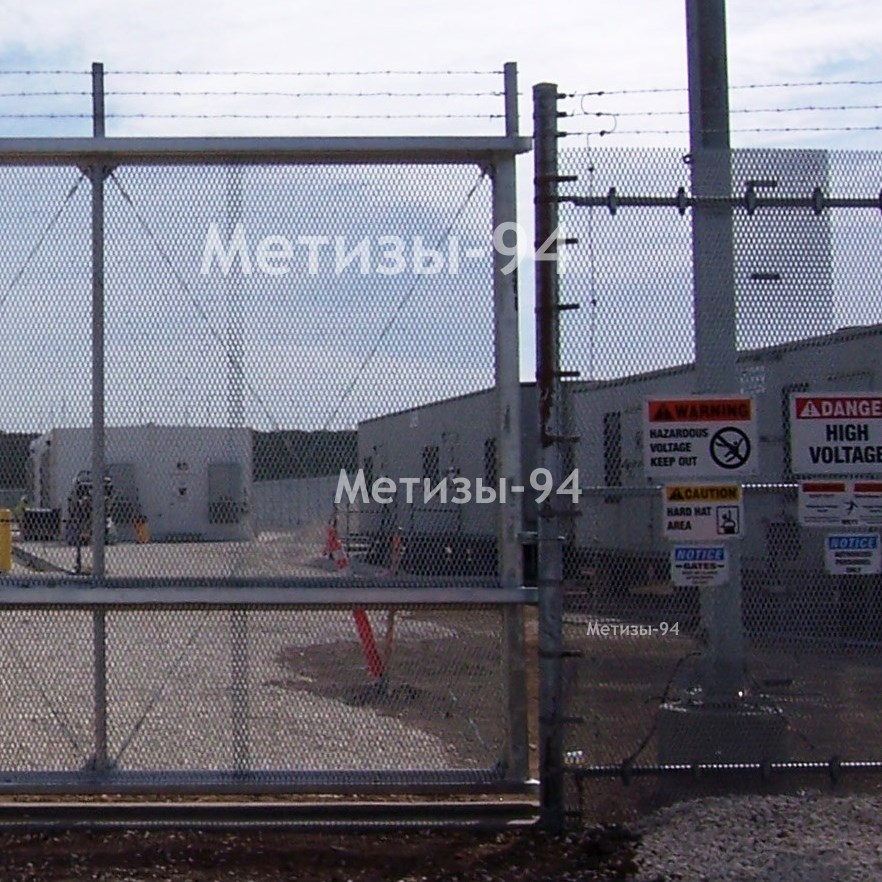

• PVL expanded metal sheet for various barriers according to safety and aesthetic requirements;
• PVL expanded metal sheet for the construction of fences for garden and yard areas, windows, apartments, balconies, verandas, heating batteries.
• expanded metal sheet (PVL) for sealing viewing, ventilation windows in machine tools, instruments, agricultural machinery;

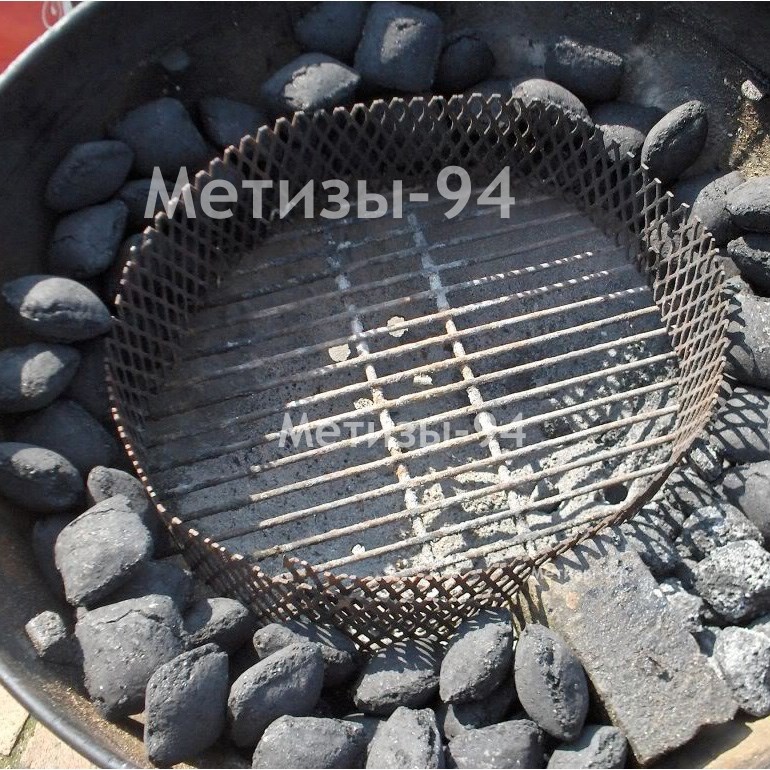

• PVL for the manufacture of barbecues, barbecues;
• expanded metal sheet for various containers;
• expanded metal sheet for screening crushed rock;
• PVL perforated as reinforcement for applying plaster;
• for creating lining during tunneling work in mines, etc.
• sheet for light-scattering barriers on roads with oncoming traffic.

Technical literature, SNiP for calculation of punched sheet

Perforated sheet is used mainly to create metal structures, including critical ones. Before buying PVL, it is necessary to be guided by state standards and SNiP, where all components are calculated for the convenience and safety of building structures, including the punched sheet:

• Building Norms and Rules II-23-81 "Steel structures". PDF Calculation of building codes and rules for metal structures by welding, bolting. It applies to building iron structures and structures not higher than C440 strength class, for areas with seismicity up to 9 points inclusive, and establishes general requirements for these structures. Regulates structures that perform technological significance, for example, machine tools and equipment, blast furnaces and air heaters, tanks and gas holders, radiating structures of antenna structures, headframes, structures of handling equipment and elevators, main and technological pipelines), railway and road bridges and hydraulic structures .
• GOST 23118-2012 "Building steel structures". PDF Establishes general norms for metal structures.
• GOST 23120-78 "Stairways, platforms and steel railings". PDF This state standard applies to steel flight stairs, platforms and railings for them, used in industrial buildings and structures created and operated in areas with air temperatures from -65 Celsius and above.

PVL production process on video

The production of PVL sheet is practically waste-free, except for the wear of knives.
