How to increase the strength of a nail joint
Want to buy a nail with 500% more bond strength than a regular nail?
Ordinary smooth nails easily slip out of the connection under mechanical stress. Because of this, the nail connection is fragile.
Screw nails increase the strength of the connection by 4 times.
Rough nails increase the adhesion strength by 5 times. And that's why. A smooth nail and a screw nail are held together only by friction. Even a screw nail can be removed with a nail puller. At the same time, it rotates and does not damage the tree.
And a ruffed nail (with annular rolling) is kept in the joint not only due to the friction force, but also due to the mechanical engagement of the annular combs on the body of the parts that it connects.
Dismantling is not possible. If the helical nails can still be unscrewed, then the dismantling of the parts connected by ring (ruff) nails will damage these parts. This happens because, entering the tree, the conical annular winding pushes the fibers apart. When the nail is driven in, due to the elasticity, the wood fibers return to their place and enter the transverse grooves between the notches. Therefore, you need to properly plan where to hammer such a nail.
Other names. Ring nails from different manufacturers are called comb, ruffled, with ring rolling, there were even "anchor".

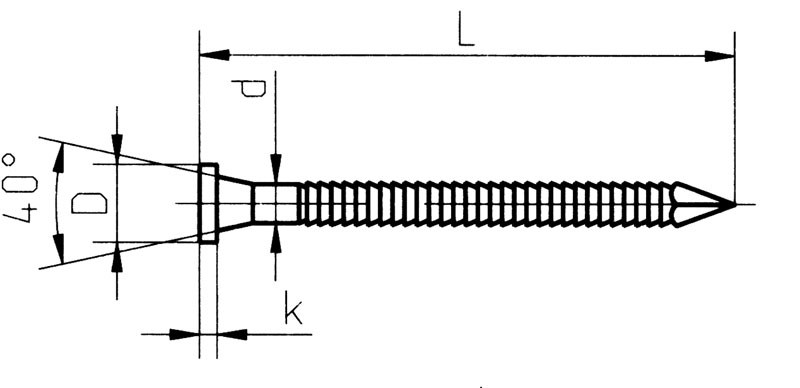

Description of ruffed nails
Ring - these are flat-head nails with a ruffed rod, made in the form of sequential knurling of rings in such a way that it receives a comb profile with a top at the tip of the nail.
The ruff nails that we supply have a flat head. Other manufacturers may have a conical head.
Ring notches after clogging dig into the wood and prevent even minimal progress of the nail inside the hole.
Specifications of ruff nails
Roughened nails with ring rolling comply with TU U 28.7-21336490-001-2002, TU U 28.7-32049534-001, we supply ring nails certified according to EPAL.
Ruffed nails are supplied uncoated and galvanized. We supply only galvanized roofing nails , because they are used in a humid environment.
The head is flat, on request we can supply with a conical head.
The shape of the notches is conical, narrowing down.
Diameter 3 3.5, 3.6 mm.
Length from 38 to 100 mm.
Look in table 1 for the weight characteristics of ruffed nails produced in accordance with the EPAL certificate for the Pallet system.
| Rod diameter, d, mm | Nail length L, mm | Quantity in 1 kg, pcs | Quantity in packing, kg |
| 3.0 | 38 | 506 | twenty |
| 3.6 | 70 | 192 | 15 |
| 3.6 | 90 | 150 | 12 |
Characteristics of ruffed nails produced in accordance with GOST 283-75 are in table 2.
| Standard sizes of a nail, mm | Nail length L, mm | Screw part length L1, mm | Rod diameter d, mm | Head diameter D, mm | Head thickness h, mm |
| 3.5x70 | 70+/-5 | 50(40) +/-5 | 3.5 -0.01 | 7.5 +/-0.5 | 1.6 +/-0.2 |
| 3.5x75 | 75+/-5 | 50(40) +/-5 | 3.5 -0.01 | 7.5 +/-0.5 | 1.6 +/-0.2 |
| 3.5x80 | 80+/-5 | 80(40) +/-5 | 3.5 -0.01 | 7.5 +/-0.5 | 1.6 +/-0.2 |
| 3.5x85 | 85+/-5 | 80(40) +/-5 | 3.5 -0.01 | 7.5 +/-0.5 | 1.6 +/-0.2 |
| 3.5x90 | 90+/-5 | 80(40) +/-5 | 3.5 -0.01 | 7.5 +/-0.5 | 1.6 +/-0.2 |
| 3.5x85 | 95+/-5 | 80(40) +/-5 | 3.5 -0.01 | 7.5 +/-0.5 | 1.6 +/-0.2 |
| 3.5x100 | 100+/-5 | 80(40) +/-5 | 3.5 -0.01 | 7.5 +/-0.5 | 1.6 +/-0.2 |
The use of ruffed nails with ring rolling
Ring nails, like screw nails, are used to make dismantling difficult.
They are used in production
- wooden euro pallets;
- ordinary flat wooden pallets;
- containers;
- boxes.
This type of nail is often bought in reels and cassettes and hammered with pneumatic guns.
Ruffed ring nails in some cases are used instead of screws and self-tapping screws. This speeds up the work.
Ruffed nails are used for:
- nailing bituminous tiles;
- knocking down wooden roof structures;
- other roofing works;
- nailing floorboards;
- nailing floor coverings;
- nailing perforated strips of metal;
- furniture manufacturing.
Brief production technology of ruff nails
The main raw material is low-carbon wire rod with a carbon content of less than 0.12%. Wire rod on drawing mills is drawn into nail wire .
The wire is threaded into the nailing machine and the hat is first stamped out, and then the desired length is cut off with the formation of a sharp end.
Then they are cleaned of trimming residues in tumbling drums and transferred to a knurling machine, where they cut an annular thread.
How to buy ruffed nails
The price of ruffed nails ( download the price list ) differs from the price of ordinary building nails in a big way, but the strength of the connection is worth it.
You can buy ruff nails with ring rolling by bank transfer, or by paying in cash to our bank account.
The price of ruffed nails in the price list is wholesale per kilogram.
We ship buff nails from a warehouse in Kamensky, Kremenchug and Kyiv or with delivery in Ukraine: to Dnipro, Krivoy Rog, Kropyvnytskyi, Cherkasy, Zaporozhye, Mariupol, Kharkiv, Poltava, Sumy, Chernihiv, Odessa, Nikolaev, Kherson and other cities.
