Stainless wire mesh: light, flexible, durable.
Buy stainless steel wire mesh from PE "Metizy-94"
Stainless wire mesh is light weight with great strength. Due to the stainless material of the cables, it is resistant to corrosion with a service life of up to 30 years. The small diameter of the flexible mesh does not affect the view.
Applications
- enclosures for animals;
- vertical structures for plants;

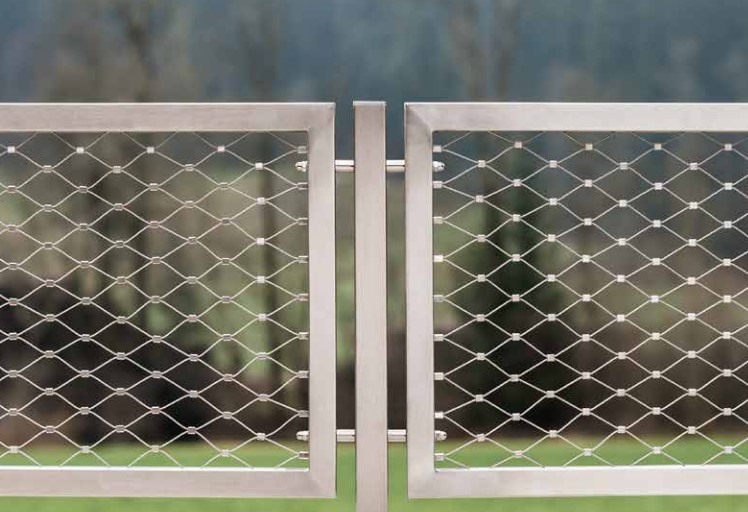

- safety fences for stairs and bridges, playgrounds;
- basis for creating media facades.
Types of stainless steel meshes

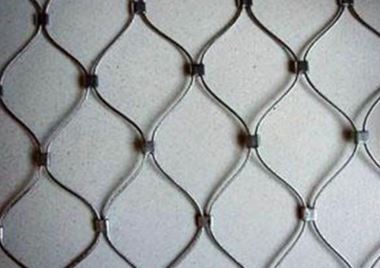

Grid with staples (stainless steel staples)

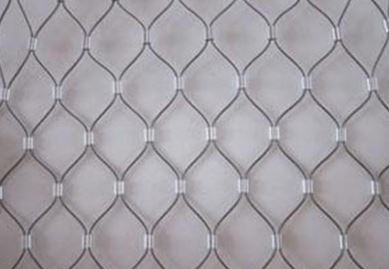

Grid with staples (aluminum staples)
Wire mesh weaving options
We will make a grid according to your individual size. The maximum net width is 10m and the length is 30m. The most popular mesh size: mesh diameter 76x76 mm, wire diameter 1.2 mm.
Possible execution options:
- Construction: 7 x 7, 7 x 19.
- Wire diameter: 1.2mm, 1.5mm, 2.0mm, 2.4mm, 3.2mm, 3.5mm.
- Material: 304, 304L, 316, 316L.

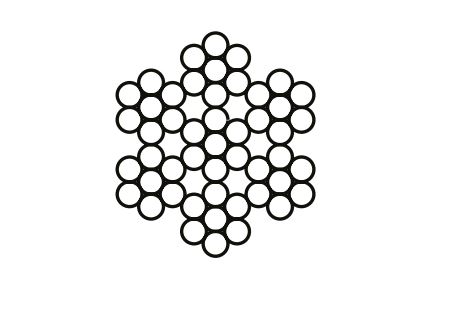

Construction: 7 x 7 DIN 3060 (very flexible rope)
| Diameter | Arithmetic breaking force, kN | Minimum breaking force, kN |
| 1.5 | 1.46 | 1.17 |
| 2 | 2.65 | 2.33 |
| 2.5 | 4.17 | 3.66 |
| 3 | 5.86 | 4.69 |
| 4 | 10.4 | 8.34 |
| five | 16.3 | 13.00 |
| 6 | 23.40 | 18.8 |
| 8 | 41.70 | 33.30 |
| 10 | 65.10 | 52.10 |
| 12 | 93.70 | 75.00 |

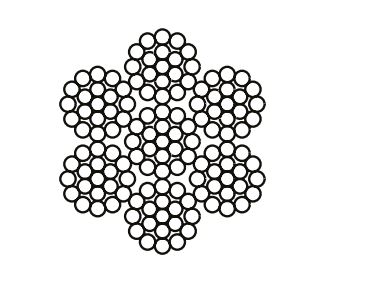

Construction: 7 x 19 DIN 3055 (flex cable)
| Diameter | Arithmetic breaking force, kN | Minimum breaking force, kN |
| one | 0.71 | 0.63 |
| 1.5 | 1.62 | 1.42 |
| 2 | 2.69 | 2.25 |
| 2.5 | 4.50 | 3.95 |
| 3 | 6.05 | 5.07 |
| 4 | 10.80 | 9.01 |
| five | 16.80 | 14.10 |
| 6 | 24.20 | 20.30 |
| 8 | 43.00 | 36.10 |

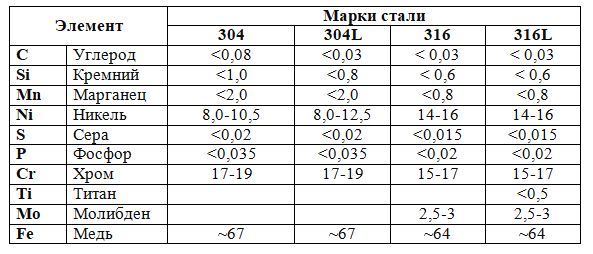

Comparison of steel grades

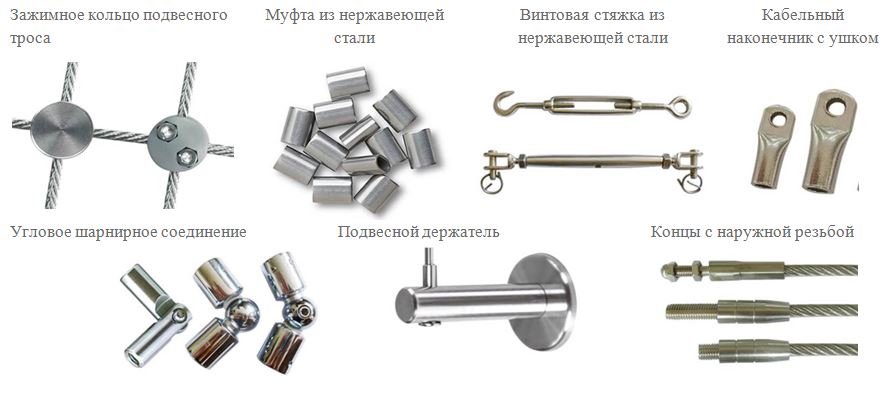

The following components are used to install the grid:
Contacts for placing an order for stainless steel wire mesh.
