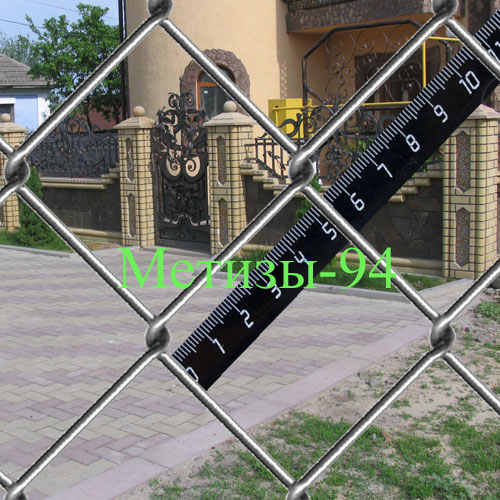

In the photo, a grid of Chain-link 50x50x3 (cell 50 mm, wire 3.0 mm ).
We posted a photo of the woven mesh Rabitz 50x50 so that you can imagine how it should look in full size.
Different monitor screens have different resolution. Therefore, put a ruler on the screen where our ruler is shown.
Press the lower left key on the keyboard Ctrl, and while holding it, scroll the mouse wheel until the divisions on your ruler coincide with the divisions on the ruler on the screen.
Now you see how the chain-link mesh with a 50x50 mm cell from a 3 mm wire should actually look like .
Grid designation Rabitsa 50x50
Grid Chain-link 50x50x3 is usually indicated as follows:
first comes the clear cell size in mm, at the end - the wire diameter in mm.
The clear cell size is the distance between the inner edges of the wire.
Sometimes they write 50x50x3.0 . This means that the chain-link mesh has a square cell with a side size of 50x50 mm.
At the end of the designation of the dimensions of the cell and wire, the dimensions of the roll in m can be added.
For example:
50x50x3 (1.2) - chain-link mesh with a cell of 50 mm, wire 3.0 mm, roll height 1.2 m.
50x50x3 (1.5x10) - chain-link mesh with a cell of 50 mm, a wire diameter of 3 mm and a roll size of 1.5x10 m.
Chain-link mesh 50x50x3, wicker mesh 50x50x3 - this is not a complete list of designations of the chain-link mesh with a square cell size in the clear of 50 mm from low-carbon wire with a diameter of 3.0 mm.
Technical characteristics of the mesh Chain-link 50x50x3
Dimensions
The wire for weaving this mesh is used galvanized, non-galvanized and polymer-coated.
The density of zinc on a galvanized wire with a diameter of 3.0 mm is 70 g / m 2 , as required by GOST 3282-74
The standard height of the wicker mesh 50x50 is 1.5 meters , but for fencing tennis courts or other sports grounds, for fencing pig farms, we can custom-make mesh Rabitsa 50-3.0 up to 4 m high .
For a number of regions of Ukraine we supply a grid of Chain-link 50x3.0 with a height of 1.2 m .
We have a grid Rabitsa 50x50x3 only factory-made (read - guaranteed quality) , but according to your order we can supply a wicker grid 50x3 from other manufacturers.
Sometimes we are asked to do this in order to reduce the price.
But other manufacturers simply make it from thinner wire, although the documents say 3.0 mm. This is the whole secret of the cheap chain-link mesh.
Don't be fooled. If you need a chain-link mesh cheaper, then it is better to buy it from the factory, but with a smaller wire diameter. In this case, the price will be less.
What to make a cheap fence?
With the cheapening of the chain-link mesh, be careful.
In Ukraine, chain-link mesh is not subject to mandatory certification, so you can be supplied with a wicker mesh 50x50x3 produced not according to GOST 5336-80, but according to the concepts of the manufacturer's company.
In this case, you can get a cell of 60 mm, instead of 50 (55 with tolerance), and the wire in the grid can have a diameter of 2.7 mm (instead of the minimum allowable 2.95 mm)
After all , the mesh netting made of thin wire has no strength . If you need a cheap fence mesh, then it is better to buy a lightweight Cossack mesh .
It turns out a fence 2-2.5 times cheaper than from the Rabitz mesh, but it is so durable that you can grow heavy bunches of grapes on it, like on trellises !!!
Package
The grid the Chain-link 50х50х3 is delivered in rolls.
A regular roll of woven mesh 50x50 contains 10 running meters of mesh. This mesh is supplied in voluminous and compact rolls.
The mesh roll is wrapped at the ends with paper or plastic film.
Tolerances and dimensional control
Wicker mesh 50x50x3 is produced in accordance with GOST 5336-80. This means that during its production tolerances are maintained:
- the maximum maximum deviation of the arithmetic mean cell size is not more than +5 mm;
- deviation in the width of the grid should not exceed - 56 mm;
- wire diameter must be at least 2.95 mm.
The thinner the wire diameter, the larger the mesh and the shorter the roll, the lighter the mesh.
Therefore, all these tolerances are easily controlled by grid weighting . The weight of the wicker mesh Chain-link 50x50x3 should be 2.28 kg / m 2 ( the table for the weight of the mesh Chain-link is here ).
This means that a mesh roll with dimensions of 1.5x10 meters should weigh 34.2 kg .
If the actual weight of the roll differs by more than 1.7 kg, take a ruler, a micrometer and check the diameter of the wire, the size of the cell, and the length of the roll - they slipped you the wrong one.
But it's easier to refuse to buy such a chain-link mesh and buy it from us.
We control all dimensions during shipment and weight too.
Application
The chain-link mesh 50x50x3 is used in cases where the strength of the fence and its durability are required. The durability of the chain-link mesh grows with the diameter of the wire and the degree of galvanization of this wire. The strength of the chain-link mesh directly depends on the diameter of the wire.
The chain-link mesh 50x50x3 is most often bought for enclosures for dogs and large animals, for fencing pig farms and making durable fences.
We tried to tell you exactly the information that is needed for those who want to buy a wicker mesh Rabitsa 50x50x3.
