Max Tensor - A tool for tensioning the wire and connecting the edges of the mesh. It works on the principle of pincers, where, due to the large lever, the wire is pulled and fixed with special Max Tensor clamps.
Simultaneous knitting and tensioning of the wire.
• 4 times faster than tying wire with knots or other traditional methods.
• Simple tight fit system utilizes the wire's internal safety margin.
• Withstanding heavy loads.
• Ease of maintenance due to the advancement of the wire in one direction - there is always the possibility of tightening it.
• Optimum corrosion resistance.
• Possibility of adjustment..
Thanks to the gear mechanism present in the Max Tensor tool, you can tension the wire with a load of up to 600 kg with minimal effort.
• The Max Tensor tool will work with all Max Tensor clips for tensioning wire fences, trellises or steel cable anchor systems.
• The tool is easy to handle, light in weight and convenient for repeated use.

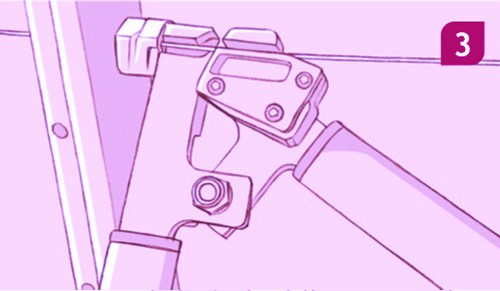

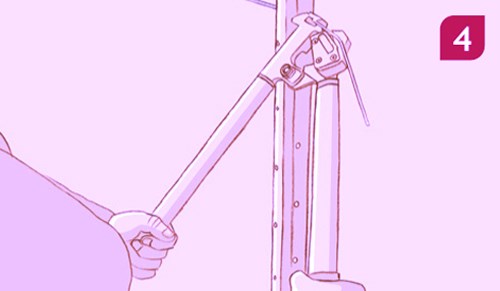

Instructions for use:
- Move the tool handles as far apart as possible.
- Lead the wire or rope into the special guides.
- Close the handles for tensioning.
- Repeat this operation until the required tension is reached.

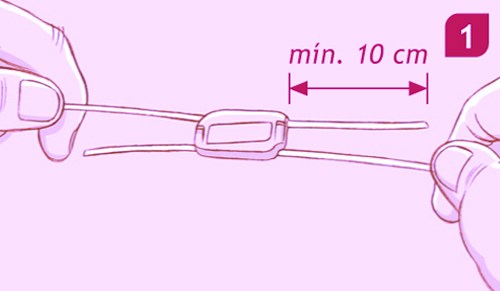

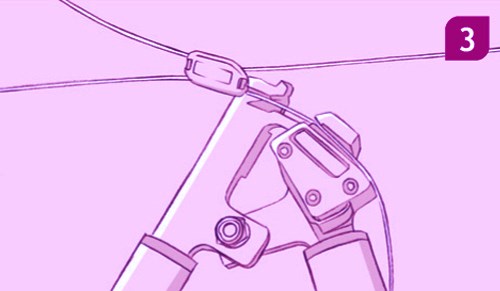

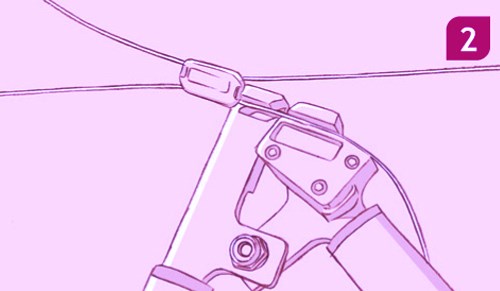

1st mounting option.
Clamps (clips) MX2
MaxTensor MX2 Specially designed for connecting and tensioning wire and rope. Allows you to repair broken sections of wire or cable. Used to lightly tension the wires with a special tool.
Clips (clips) MAXTENSOR MXS2
- wire diameter 1.3 - 2.2 mm
- maximum load 250 kg
Clips (clips) MAXTENSOR pro MX2
- wire diameter 2.0 - 3.0 mm
- maximum load 400 kg
Clips (clips) MAXTENSOR pro MXL2
- wire diameter 2.7 - 4.0 mm
- maximum load 600 kg

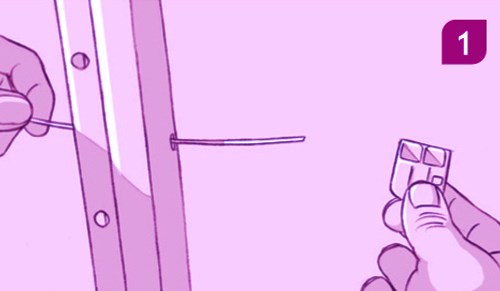

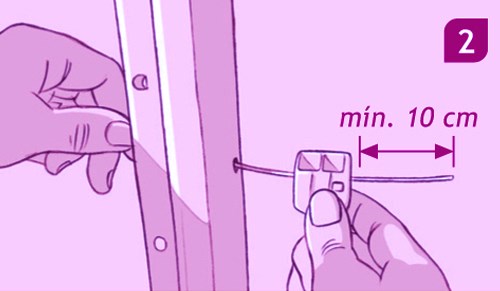

2nd mounting option
Clamps (clips) MX1
Specially designed for gripping and pulling wire or rope at the end of a section. It has one hole and is used as a clamp for the end of the wire using pliers (pliers) for tension, which allows you to firmly fix the ends of the wire. In fact, it acts as a stop.
Specifications connection MAXTENSOR pro MX1
- wire diameter 1.8 - 3.0 mm
- maximum load 400 kg
